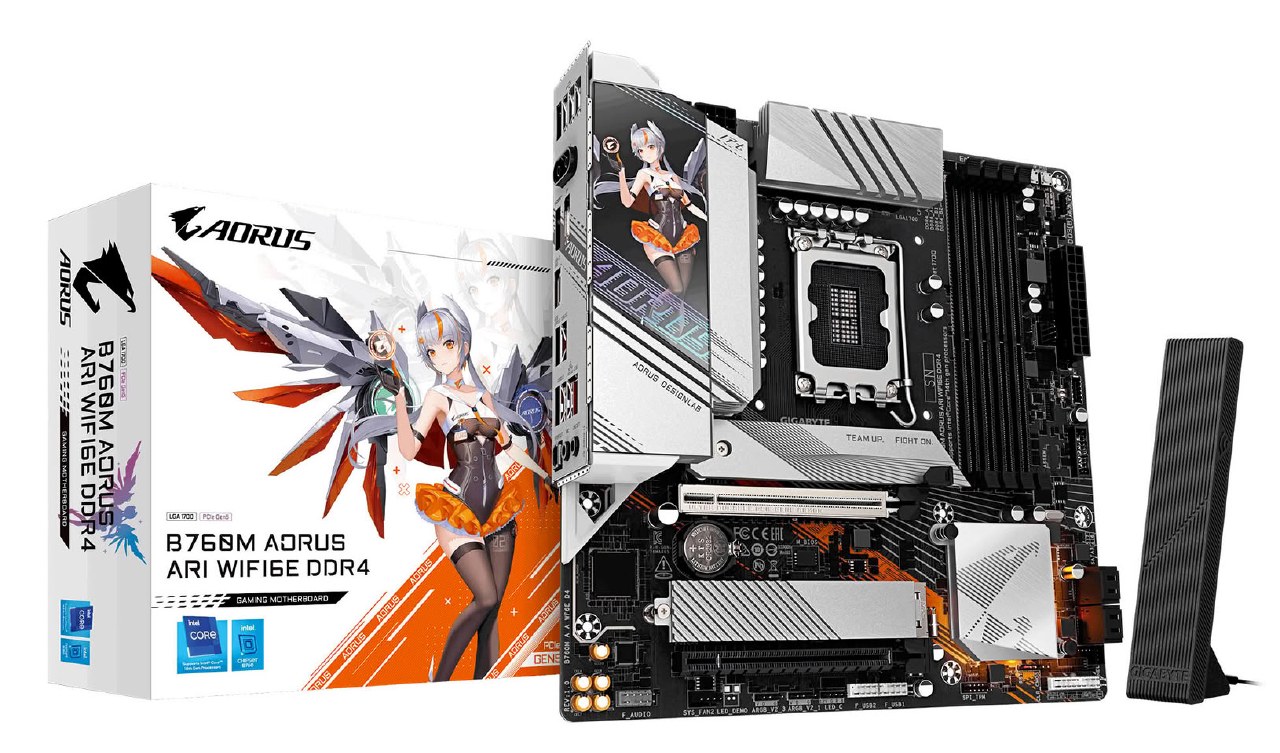

Gigabyte has introduced the B760M AORUS Ari WiFi6E DDR4, a microATX motherboard designed for Intel LGA1700 processors. The board supports 12th, 13th, and 14th Gen Intel CPUs and utilizes the B760 chipset, which allows for the use of DDR4 memory instead of DDR5. The device features a 12+1+1 phase hybrid VRM and includes dedicated heatsinks for the VRM, PCH, and M.2 slots.
The motherboard is equipped with four DIMM slots supporting up to 128 GB of DDR4-5333 memory. Connectivity options include 2.5 GbE LAN and Intel Wi-Fi 6E AX210 with a specialized antenna positioning feature. The rear I/O panel provides USB-C ports with 20 Gbps speeds, DisplayPort, and HDMI 2.1, while the front header supports 10 Gbps USB-C connections.
Storage capabilities consist of two PCIe 4.0 x4 M.2 slots with screwless installation and four SATA ports. The primary PCIe 5.0 x16 slot includes a quick-release mechanism. Additional features include the Realtek ALC1220 audio codec, Q-Flash Plus for BIOS updates, and Smart Fan 6 control. The product is currently available in Japan at a price of ¥26 800, approximately $170.
