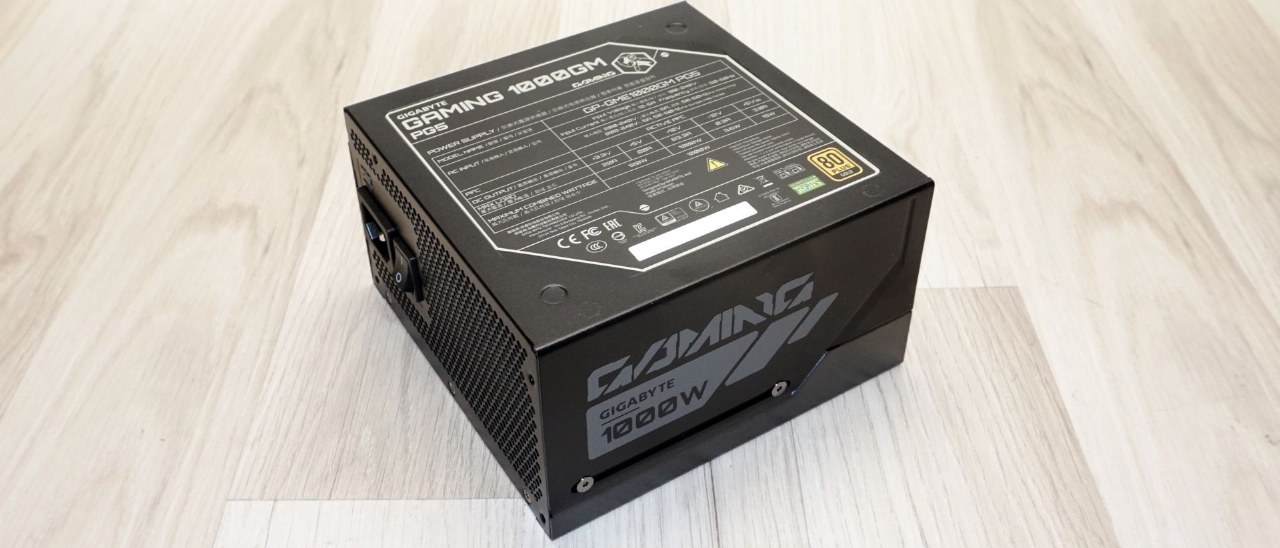

The Gigabyte Gaming 1000GM PG5 is a 1000W power supply unit designed to meet ATX 3.1 and PCIe 5.1 standards. It features a native 12V-2x6 connector and utilizes a 135 mm fluid dynamic bearing fan. The device is manufactured by HEC and incorporates Japanese capacitors throughout its internal design.
A key feature of this model is the T-Guard thermal monitoring system. It tracks the temperature of the 12V-2x6 connector in real time and cuts power to the graphics card if overheating is detected to prevent connector failure. The unit is backed by a ten-year warranty and is also available in a white version called the 1000GM PG5 ICE.
Although marketed with an 80 PLUS Gold logo, the unit has achieved Platinum-level efficiency certifications from both CLEAResult and Cybenetics. During testing, it maintained high efficiency across various loads, showing only a 0.8% drop when ambient temperatures increased from 25°C to 45°C.
The power supply measures 150 x 150 x 86 mm and features a fully modular cable design with flat, embossed cables. The retail package includes the unit, an AC power cord, and cable ties, but lacks mounting screws. At the time of the review, the unit is priced at $170.
